DeepSizer 300
DeepSizer 300

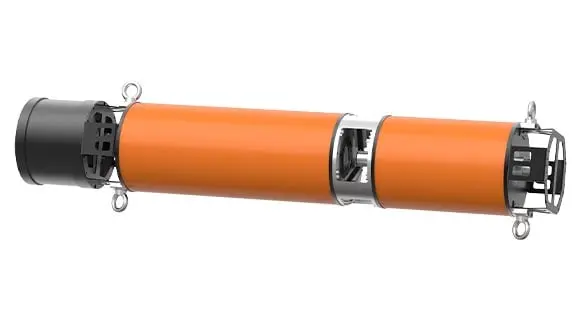

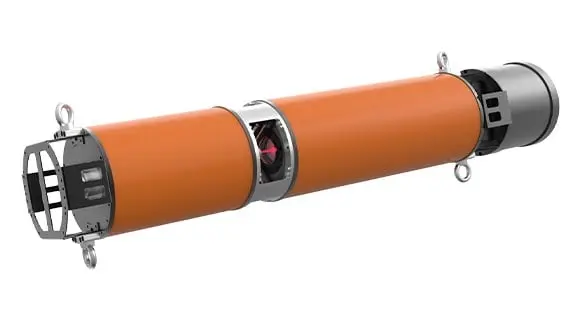

DeepSizer 300 is a submersible particle size analyzer designed for intelligent sediment monitoring. It measures concentration (0.001–100 g/L) and particle size (0.1–2000 μm) directly in rivers, lakes, estuaries, and coastal waters
Measures a broad concentration range (0.001 - 100 g/L) and particle sizes from 0.1 to 2000 µm, delivering high-precision data across diverse water bodies.
Measures additional parameters: depth, temperature, and conductivity.
80-detector array: detects light signals from 0.0163° to 42°.
Patented core technologies: incorporate Differential Path Technology and Adaptive Path Technology, ensuring measurement accuracy and superior environmental adaptability.

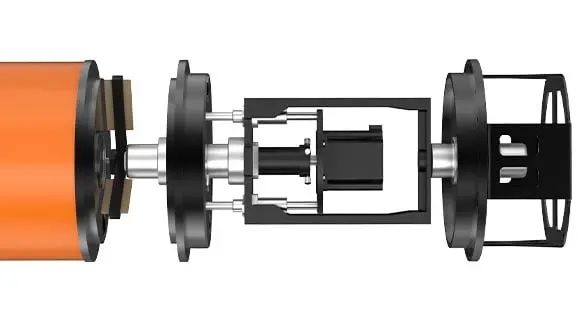

Automatic optical window cleaning system: removes deposits and contaminants from optical windows, keeping the instrument in optimal condition.
Offers three transmission modes—wired, wireless, and offline—to adapt to diverse monitoring scenarios.
Have questions about this product?
Contact our sales teamProduct Overview
The DeepSizer 300 is a submersible particle size analyzer for real-time sediment monitoring in rivers, lakes, estuaries, and coastal waters. It measures concentrations from 0.001 to 100 g/L and particle sizes from 0.1 to 2000 μm with high accuracy. Powered by six advanced technologies—including two patented innovations, Differential Path and Adaptive Path Technologies—DeepSizer 300 intelligently adapts to diverse conditions, delivering reliable performance even in the most extreme environments. DeepSizer 300 eliminates the risks, delays, inaccuracies, and maintenance hassles of traditional sediment analysis. It delivers trusted insights for sediment studies, ecological monitoring, water-quality assessments, and hydraulic engineering— supporting resilient and sustainable water systems
